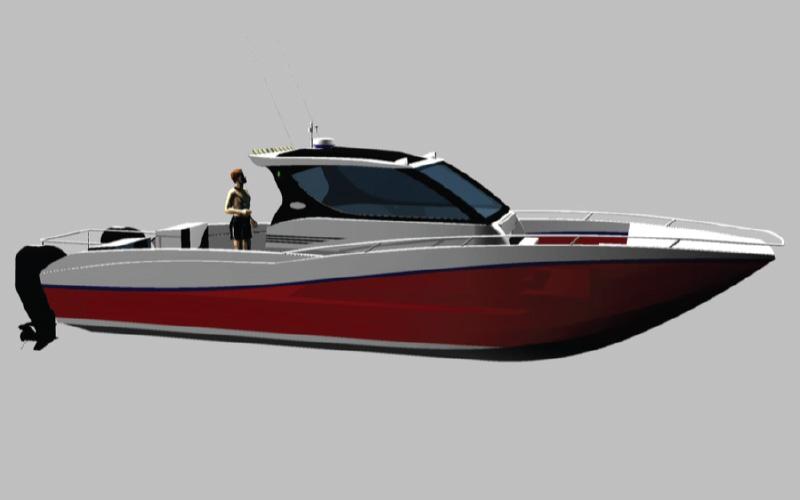

x36 walk around boat 3





X-36 WALK AROUND

Female molded Isenthalpic Polyester/E-glass/ construction with isophtalic gelcoat. White as standard. Dark colors are to be generally discouraged on horizontal surfaces. Balsa coring in hull for the highest obtainable strength/weight ratio & excellent thermal insulation. Reinforcement for structure. Core material monolithic and voided in areas of through-hulls One-piece hull lamination with molded flange for deck attachment False bow in slamming area. Antifouling bottom paint.

Specifications:

  • LOA = 8.75m/28’ 7”11.100 m / 36.4’
  • Beam max = 3.72 m / 12.2’
  • Draft = 0.53m / 1.7’
  • Weight = 12000lb
  • Power = Min2x300Hp Max3x300Hp
  • Speed = 36kts to 41 kts
  • Fuel capacity = 800l
  • Passengers = 15
  • Certification = SAMSA
  • Hull type = Planing catamaran
REQUEST A QUOTE

x36 walk around boat 2



















STANDARD FEATURES

CONSTRUCTION

CONSTRUCTION

HULL:

  • Female molded Isenthalpic Polyester/E-glass/ construction with isophtalic gelcoat. White as standard. Dark colors are to be generally discouraged on horizontal surfaces.
  • Balsa coring in hull for the highest obtainable strength/weight ratio & excellent thermal insulation. Reinforcement for structure. Core material monolithic and voided in areas of through-hulls
  • One-piece hull lamination with molded flange for deck attachment
  • False bow in slamming area.
  • Antifouling bottom paint.

DECK:

Female molded with anti slip, Polyester/E-glass construction. White as standard. Hexacore or foam coring in deck for the highest obtainable strength/weight ratio & excellent thermal insulation.

MECHANICAL

MECHANICAL

Stainless steel & Bronze:

All stainless steel for the visible parts is to be 316 s/s. Bronze has to be used when the circumstances justify it.

ENGINE FOUNDATIONS:

Transom in sandwich construction is provided in each hull. Transom core from closed cell Coosa board.

ELECTRICAL

ELECTRICAL

12V DC SYSTEM:
Breaker panel, Mastervolt or similar.
Custom designed fuse block and distribution board by Multimarine.
Digital Link Battery monitor gauge showing voltage, charge and discharge.
Batteries – Delco type 12V 110 Ah house batteries
(2) Separate 12V 140A batteries: engine start
(4) Separate switches & blocking diode, charging distributor.
All circuit protected with breakers, main switch at breaker panel.
Cigarette lighter adapter plug, Voltmeter, Amp meter, battery test meter, panel lighting, Water gauge
Fully bonded
Helm station Electronics, Navigation equipment & Controls:
Steering compass SUUNTO or RITCHIE
Navigation Lights - Aquasignal
All wiring accessible, labeled and in appropriate conduits, spare chases to accommodate future wiring.

DECK HARDWARE

DECK HARDWARE

Layout & Features:

Cockpit hard top.
Opening ports / VETUSPX57 or similar
Companionway sliding & hinged acrylic hatches, Captive safety pin secures hatch
boards in heavy weather Twin Helm seats

MARINE GRADE DECK STAINLESS:

Stainless steel bow rail.
Stern pulpit
Transom lifeline gate, SS swim/re-boarding ladder Stainless steel grab rails
Stainless cleats & appropriate fairleads, chafe guards Bow fitting with anchor roller and anchor hold

HELMSTATION

Cockpit hard top.
Glass windscreen
Cup holders at helm station and cockpit
Cockpit Navigation & Helm Station: Two seat helm station. With plexi-glass cover Navigation & electronics switchboard

Storage: Where available, gel-coated

Optional Extras

  • Life raft Lazilas 8 persons
  • Water maker, Sea Recovery producing 63 l/h
  • Manual backup fresh water pump at each sink
  • Inverter – Mastervolt 1000W
  • Autopilot - Navman 500
  • Raymarine autopilot and joystick.
  • Watertight Cockpit radio/cd/mp3 CDC 9000 with 2 speakers
  • HIFI system in cockpit with 4 watertight speakers
  • Hull color per owners spec
  • Hull Color graphics
  • Opening cockpit side windows
  • FURUNO GP-3500F: GPS/DGPS/WAAS Video plotter with Echo Sounder, color 10.4” Out riggers
  • Aft cockpit sink
  • Fish box and cooler
  • Rod holder
  • Fighting chair
  • Live bait well
  • Cockpit cushions Sunbrella
  • Custom dashboard (carbon fiber) POA and pending design
  • Special pilot seats Benensoni, STIDD or similar (POA)
  • Searchlight/spot light on top wing, with remote control, Jabsco 60080-0012
  • VHF radio remote ICOM HM127B
